| Brand Name: | ACME |
| Model Number: | TB1060 |
| MOQ: | 1 |
| Price: | $491 |
| Payment Terms: | L/C,D/A,T/T,Western Union |
| Supply Ability: | 200 |

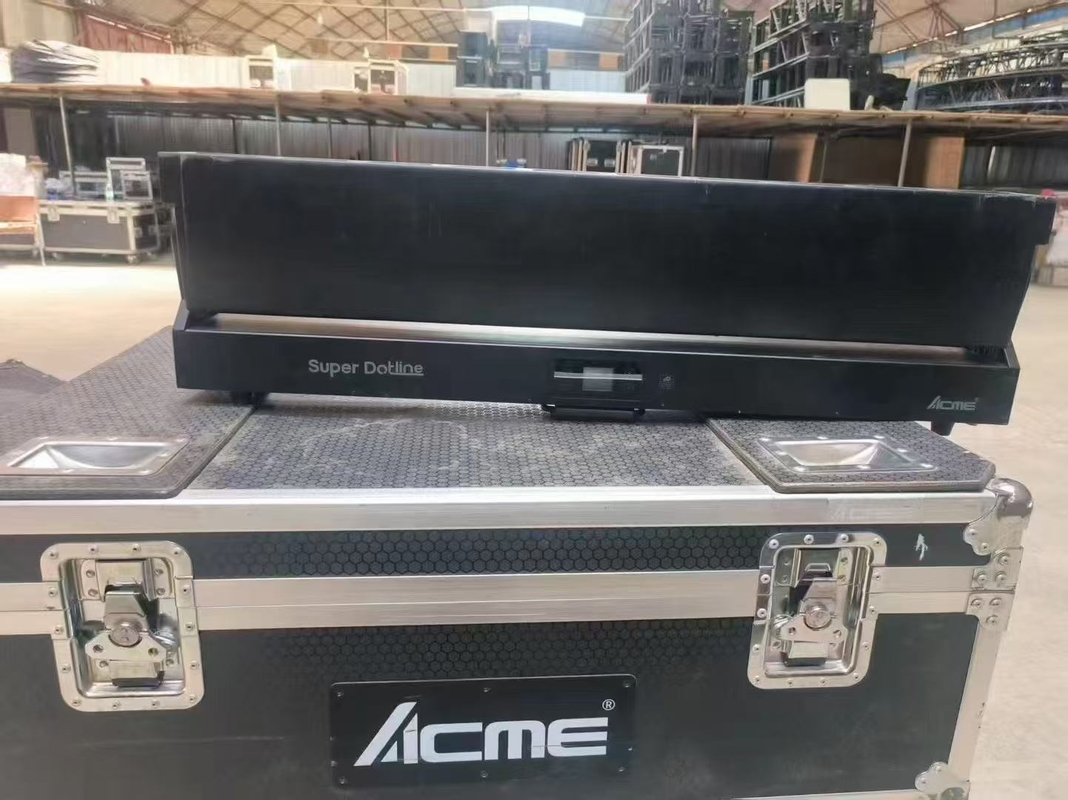

The TB 1060 represents ACME's next-generation atmospheric lighting solution, building upon the successful TB-1230 QW platform. This professional-grade effect light combines beam, strobe, and wash capabilities in a single unit, featuring advanced 60W RGBW LED technology for superior projection quality and color mixing performance.
| Category | Item | Specification |
|---|---|---|
| Basic Information | Product Model | XG-LED1224C4/D20 |
| Applicable Standard | T/CETA001-2021 | |

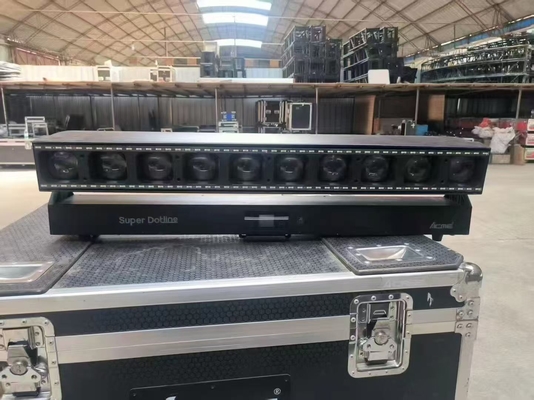

| Light Source System | Beam End | 10 x 60W RGBW LED |
| Strobe End | 96 x 3W CW LED + 96 x 3W WW LED + 96 x 0.5W RGB LED | |
| White Light Color Temperature | 6,300K | |
| Total Luminous Flux | 23,000 lumens | |
| LED Expected Lifespan | 20,000 hours | |
| Optical System | Beam Angle | 2.8° - 31° (beam end) |
| Field Angle | 5° - 46° (beam end) | |
| Control Features | Control Panel | 4 touch keys, LCD display |
| Control Protocols | DMX512, RDM, Art-Net, sACN | |
| DMX Channel Modes | 8 types (17/27/99/108/168/8+100/8+160/170 channels) | |
| Software Upgrade | Supports firmware updates via DMX connection | |
| Movement System | Y-Axis Rotation Angle | 202° |
| Fixing Lock | Vertical lock | |

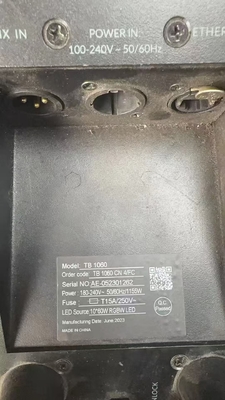

| Electrical Characteristics | Input Power | AC 180-240V~, 50/60Hz |
| Maximum Power Consumption | 1,155 W | |
| Power Connector | PowerCON input/output | |
| Signal Interface | 3-pin/5-pin XLR socket, RJ45 Ethernet port | |
| Physical Properties | Fixture Dimensions (LxWxH) | 1000 x 290 x 120 mm (39.4" x 11.4" x 4.7") |
| Fixture Net Weight | 23 kg (50.7 lbs) | |

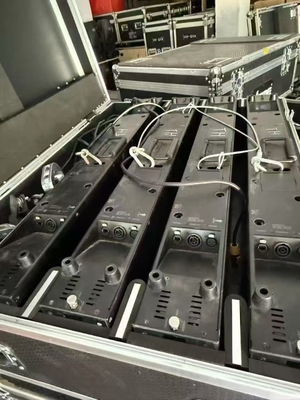

| Flight Case (for 4 units) | 1075 x 780 x 530 mm (42.3"x30.7"x20.9") Weight: 152 kg (335.1 lbs) |
|
| Carton (for 1 unit) | 1200 x 400 x 245 mm (47.2"x15.7"x9.6") Weight: 27 kg (60 lbs) |
|
| Environmental Parameters | Maximum Ambient Temperature | 40°C |
| Minimum Operating Temperature | 0°C | |
| Maximum Surface Temperature | 65°C | |
| Protection Rating | IP20 | |
| Certification | Certifications | CE, UKCA, cETLus |
| Installation | Mounting Orientation | Horizontal or vertical |
| Hanging Hardware | 2 quick-lock hooks for 50mm truss | |
| Safety Feature | Safety rope connection hole |
